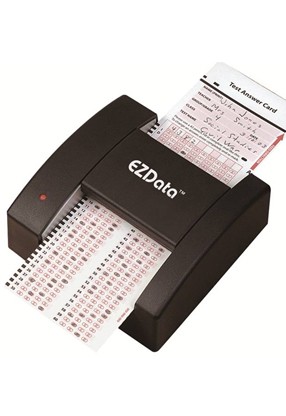

Scantron EZData Optical Reader
Technical Specifications
Communication:
• RS232 connection or USB 1.1 or 2.0 connection
• Keyspan USB Serial Adapter recommended, if needed
Physical Description:
• Length: 5.54 (140.72 mm)
• Width: 5.54 (140.72 mm)
• Height: 2.60 (66.04 mm)
• Weight: 2.5 lbs. (1.14 kg)
Environment:
• Operating Temperature: 41 to 113 degrees Fahrenheit (5 to 45 degrees Centigrade)
• Operating Humidity: 30% to 80% non-condensing
• Storage Temperature: -40 to +140 degrees Fahrenheit
• Storage Humidity: 5% to 90% non condensing Power
Power:
• Voltage Range: 100-240 volts AC 47-63
• CE Mark Certified: External Universal Power Supply
Operation:
• Hand Feed: 25 to 30 forms/minute
• Power On/Ready Indicator: Two Colored LED, red and green
• Single Side Read Head (Bottom): .25” spacing (1 timing mark/12 responses)
• Form Sizes: Range from 3.25” x 3.25” to 3.25” x 14”
• Form Type: Ink (pencil, blue and black ink marking instruments may be used).
• Stackers: Eject form out the back or the front of the scanner
