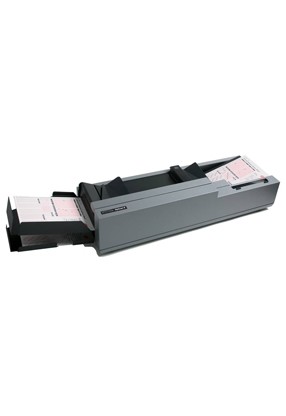

Scantron OpScan 8/36-50 OMR Scanner
Technical Specifications
Physical Description
• Length: 47.5”
•Height: 10.5”
•Width: 13.25”
•Weight: 52 lbs
Environment
•Operating Temperature: 60 to 85 degrees F
•Humidity: 40% to 60% relative; non-condensating
•Heat Dissipation: 900 BTUs per hour nominal
Power
•Standard: 115 VAC +/-10% single phase; 60 Hz +/-5%; US 3-prong plug; 8 ft. cable; requires 15 amp dedicated circuit, single phase
•Option A: 50 Hz +/-5%; 100 or 110 VAC +/-10%; US 3-prong plug; 8 ft. cable; requires 15 amp dedicated circuit, single phase
•Option B: 50 Hz +/-5%; 220 or 240 VAC +/-10%; US 3-prong plug; 8 ft. cable; requires 7.5 amp dedicated circuit, single phase
Communications
•Asynchronous: Protocol is defined to meet user’s requirements; two female RS232 connections.
• Communication Speed: From 1,200 to 115,200 baud.
Host Port for local or remote connection; cable at no
charge when specified by the customer at time of scanner order.
•Auxiliary Port allows connection of a terminal printer or video display in series with the scanner; cable may
be purchased from Scantron.
• Compatibility: Sentry 3000® scanner emulation mode. RS232 connection or USB 1.1 or 2.0
connection. Keyspan USB Serial Adapter recommended, if needed.
Operation
2.5” x 5” to 9” x 12” (60-100 lb. Offset); uses both Mark Reflex and Trans-Optic forms.
• Form Input Capacity: Auto-feed 300sheets.
• Output Stacker Capacity: 300 sheets main stacker; 100 sheets select stacker.
• Controls: Two push button programmable switches.
• Message Display: 40 character, alphanumeric, fluorescent
• Scanning Rate: Model 36—3,600 sheets per hour (Actual scanning rate depends on quantity of data read from the form and the amount of processing done on that data while scanning).
• Programmable Interactive Transport Printer: Prints up to 63 characters per document; variable message printing based on scanned data.
Components
• Read Head: 16 level mark discrimination; self calibrating read head; one or two-sided reflective read;
Scantron .166” format.
•Document Transport: Automatic feed; open design.
Software Interfaces
The OpScan 8 scanner, is compatible with ScanTools® Plus. This software allows you tomaintain files and
define scannable forms—plus scan, edit, validate and display data. Interfacing with an OpScan scanner into
your own custom software solution is done using the ScanTools Plus Link SDK and ScanTools Plus software.
These tools are used by software programmers to implement scanning within their own software programs.
For added value, the software converts files of scanned data into formats compatible with other commonly
used packages,such as
Microsoft® Access, Excel, Lotus® and SPSS® software.
Options
The OpScan 8 scanner is available with optional features:
• Dual-side reflective read head for faster two sidedform scanning.
• Ink read heads to scan both pen and pencil.
• Bar code attachment delivers immediate, automaticbar code identification.
• Download capability permits ASCII coded output,which simplifies implementation when not using a PC.
• USB 2.0 with optional adaptor.
