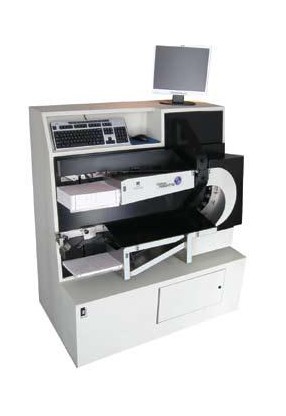

Scantron INSIGHT 150 Optical Reader
EXCELLENT PRODUCTIVITY
Document Imaging Features
• Includes Click&Scan software which offers one-click functionality to send documents to file, email, printers, fax printers and desktop applications
• Utilizes TWAIN Driver (included)
• Output resolutions from 75 to 1200 dpi
• Interactive brightness, contrast, and color adjustment
• Optical resolution at 600 dpi
• Simultaneous black & white, color or grayscale image output
• Save files in TIFF, JPEG, RTF and PDF formats
• Supported by Scantron's extensive services organization to ensure maximum uptime and customer satisfaction
CUSTOMER APPLICATION SIDEBARS
• Testing and Training
• Tests and learning assessment
• Instructor, performance, and course evaluations
• Enrollment and tracking
• Employee in-services
• Student profiles, documentation, and forms
• Research and Evaluation
• Survey and questionnaire data collection
• Product research
• Program evaluations
• Competitive data collection
• Enrollment and applications
• Human Resources
• Payroll/time sheets
• Benefit enrollments
• Applicant tracking
• Employee change of status
• Employee surveys
• 360-Degree surveys
• Healthcare
• Patient encounter forms
• Patient satisfaction surveys
• Medical histories and patient forms
• Patient, needs and risk assessments
• Nurse staffing reports
• Continuing education evaluations
General Specifications
Scanning Technology:Dual CCD/Grayscale output bit depth is 256 levels (8-bit) Color capture bit depth is 48 bits (16 x 3); color output bit depth is 24 bits (8 x 3).
Optical Resolution:600 dpi
Multi-feed Detection:With ultrasonic technology
Connectivity:USB 2.0
Bundled Software:TWAIN Drivers; Click&Scan; ScanTools Plus
Electrical Requirements:100-240 V (International); 50/60 Hz; universal power supply included
Power Consumption
Sleep Mode: < 4 Watts; Running: < 60 Watts
Environmental Factors: Energy Star qualified scanner Operating temperature: 15-35° C (59-95° F) Operating humidity: 15-76 percent relative humidity
Acoustical Noise:Standby mode: <32 dB(A)Operating mode: <65 dB(A)
Supported Operating Systems:Windows XP SP2; Windows 7 (32 or 64-bit)
Data Collection Specification
Throughput :Up to 7000 Sheets per hour
Read Heads:200 dots per inch (DPI) resolution, up to 256 levels of grayscale per pixel. Pencil and ink read capabilities
Forms:2.5" x 5.5" to 9" x 14" (60-100 lb. Offset), Uses both Mark Reflex and Trans-Optic forms. Pencil and ink forms may be used.
Spacing's supported:.166, .166 48 cell, .200 inline, .200 offset, .200 line read, and .300 line read
Barcode :Standard - Software read through ScanTools
Bundled Software:ScanTools Plus
Document Imaging Specifications
Image output : Black and white, grayscale (8 bit), color (24 bit)
Output resolution : 75, 100, 150, 200, 240, 300, 400, 600 and 1200 dpi
Paper Thickness Weight :34-413 g/m2 (9-110 lb.) paper
Bundled Software:TWAIN driver, Click & Scan
File Format Outputs: Single and multi-page TIFF, JPEG, RTF, PDF
SYSTEM REQUIREMENTS
PC Hardware
•For documents up to 14 in. (356 mm) long at 400 dpi:
•Pentium® processor, 2 GHz 32-bit (x86) or 64-bit (x64) minimum, 2 GB RAM
•40 GB hard drive with minimum 20GB available hard disk space.
•When using a PC running the Windows 7 operating system, at least 3 GB RAM is required.
•For longer documents/higher resolutions: Pentium® processor, 2 GHz 32-bit (x86) or 64-bit (x64) minimum, 4 GB RAM, 40 GB hard drive with minimum 20GB available hard disk space.
•Monitor should be 1024 x 768 or higher resolution.
Operating Systems
•Windows 7, 32-bit and 64-bit Editions.
•Windows® XP Professional SP3 or greater.
•All Windows hot fixes for the service pack must also be installed.
