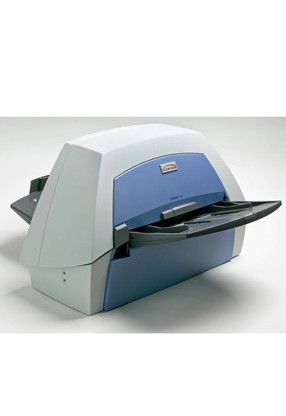

Scantron iNSIGHT 30 Document Scanner
General Specifications
Scanning Technology Dual CCD/Grayscale output bit depth is 256 levels (8-bit),Color capture bit depth is 48 bits (16 x 3), Color output bit depth is 24 bits (8 x 3).
Optical Resolution:600 dpi
Multi-feed Detection:With ultrasonic technology
Connectivity:USB 2.0
Bundled Software:TWAIN Drivers; Click & Scan; ScanTools Plus
Electrical Requirements:100-240 V (International); 50/60 Hz; Universal power supply included
Power Consumption:Sleep Mode < 4 watts, Running:60 watts
Environmental Factor:Energy Star qualified scanner;
Operating temperature : 15-35° C (59-95° F);
Operating humidity: 15-76 percentrelative humidity
Acoustical Noise (operator position sound pressure level):Standby mode: 32 dB(A); Operating mode: <65 dB(A)
Physical Description: 26”x 24” x 14” operational, 13”x 24”X 14 storage foot print, 23 lbs (10.4 kg)
Recommended:For documents up to 14 in. (356 mm) long at 400 dpi: Pentium® processor, 2 GHz 32-bit (x86) or 64-bit (x64) minimum, 2 GB RAM, 40 GB hard drive with minimum 20GB available hard disk space. For
optimal performance when using a PC running the Windows 7 operating system, at least 3 GB RAM is recommended. For longer documents/higher resolutions: Pentium® processor, 2 GHz 32-bit (x86) or 64-bit (x64) minimum, 4 GB RAM, 40 GB hard drive with minimum 20 GB available hard disk space. Monitor should be 1024 x 768 or higher resolution.
Supported Operating Systems: Windows 7, 32-bit and 64-bit Editions. Windows Vista®
Business Edition or greater, 32-bit Edition only SP1 or greater.
Windows® XP Professional SP3 or greater.
All Windows hot fixes for the service pack must also be installed.
Data Collection Specification
Throughput:Up to 1800 Sheets per hour
Read Heads: 200 dots per inch (DPI) resolution, up to 256 levels of grayscale per pixel; pencil and ink read capabilities
Forms:2.5” x 5.5” to 9” x 14” (60-100 lb. Offset), Uses both Mark Reflex and Trans-Optic forms;Pencil and ink forms may be used
Feeder Capacity:90 sheets, 90 g/m2 (24 lb bond, 60 lb Offset)
Spacing’s supported:.166, .166 48 cell,.200 inline, .200 offset,.200 line read, and .300 line read
Barcode: Standard-Software read through ScanTools
Bundled Software:ScanTools Plus
Document Imaging Specifications
Throughput(200 dpi, landscape, letter size,black and white/grayscale/color):Up to 75 page per minute/150 images per minute
Image output:Black and white, grayscale (8 bit), color (24 bit)
Output resolution:75, 100, 150, 200, 240, 300, 400, 600 and 1200 dpi
Maximum document size:297 mm x 863 mm (11.7 in. x 34 in.)
Minimum document size:64 mm x 89 mm (2.5 in. x 3.5 in.)
Imprinter:Post-scan document imprinter (Ink cartridge carrier and ink cartridge sold separately)
Paper Thickness and Weight: 34-413 g/m2 9-110 lb.) paper
Feeder Capacity:Up to 150 sheets of 60 g/m² (16 lb.) paper
Bundled Software:TWAIN driver, Click & Scan
File Format Outputs:Single and multi-page TIFF, JPEG, RTF, PDF
