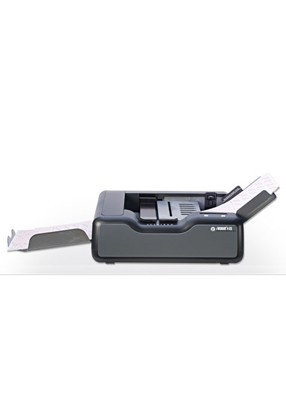

Scantron iNSIGHT 4ES OMR and Image Scanner
Technical Specifications
Physical Description
• Length: 21.25”
• Width: 14.5”
• Height: 9”
• Weight: 17 lbs
Environment
• Operating Temperature: 60° to 85°F (16°C to 29°C)
• Humidity: 40% to 60%, non-condensating
Power
100-240 volt operation: 100-240 volts AC (-10%, +6%): 50-60 Hz; US 3-prong plug; 15 amp dedicated circuit
Communications
USB 2.0 connection—Image or OMR processing
Operation
• Dual Read Heads: 200 dots per inch (dpi) resolution, up to 256 levels of grayscale per pixel; pencil and ink read capabilities
• Pencil or ink forms may be used
• Scanning Rate: 2,800 sheets per hour in OMR mode, 2,300 sheets per hour in OMR with imaging mode.
• Forms: 2.5” x 5” to 9” x 14” (60-100 lb. Offset). Uses both Mark Reflex B and Trans-Optic® forms
• Form Input Capacity: Auto-feed, 100 sheets
• Output Stacker Capacity: 100 sheets main stacker, 100 sheets select stacker (if present)
• Controls: Two Push button programmable switches
• Message Display: 40 character, alphanumeric
• Multi-feed detection
• Integrated ES/ScanMark™ Emulation Mode
Options
• Programmable interactive printer(s) that print information on the sheet being scanned based on the scanned data.
The printer(s) can print error codes, alphanumeric messages, serial
numbers, validation flags, and test scores with no effect on the
throughput rate.
• Bar code reader - reads bar codes in ladder format.
• SelfScore option allows operation without connection to a host computer with test scoring, survey, and ballot capabilities
• Select Stacker allows separate stacking of sheets based on criteria selected in your scanning software.
• Optional RealTime Character Recognition utilizing NestorReader™ software allows processing of machine and hand print data.
