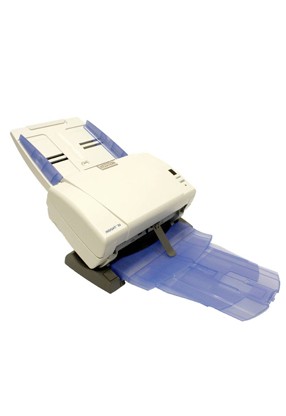

Scantron INSIGHT 20 Optical Reader
General Specifications
Scanning Technology:Dual CCD/Grayscale output bit depth is 256 levels (8-bit),Color capture bit depth is 48 bits (16 x 3), Color output bit depth is 24 bits (8 x 3).
Optical Resolution:600 dpi
Multi-feed Detection:With ultrasonic technology
Connectivity:USB 2.0
Bundled Software:TWAIN Drivers; Click & Scan; ScanTools Plus
Electrical Requirements:100-240 V (International); 50/60 Hz; Universal power supply included
Power Consumption:Sleep Mode < 6 watts, Running:35 watts
Environmental Factor:Energy Star qualified scanner;Operating temperature: 15-35° C (59-95° F);Operating humidity: 15-76 percent relative humidity
Acoustical Noise(operator position sound pressure level):Standby mode: 32 dB(A); Operating mode: <65 dB(A)
Physical Description:30”x 13” x 10.75” operational, 6.5”x 13”X, 9.5” storage foot print, Weight: 16.5 lbs
Recommended PC Configuration:For documents up to 14 in.(356 mm) long at 400 dpi: Pentium® processor, 2 GHz 32-bit (x86) or 64-bit (x64)minimum, 2 GB RAM, 40 GB hard drive with minimum 20GB available hard disk space.For optimal performance when using a PC running the Windows 7 operating system, at least 3 GB RAMis recommended.For longer documents/higher resolutions: Pentium® processor,2 GHz 32-bit (x86) or 64-bit (x64) minimum, 4 GB RAM, 40 GB hard drive with minimum 20 GB available hard disk space.Monitor should be 1024 x 768 or higher resolution.
Supported:Windows 7, 32-bit and 64-bit Editions.
Windows Vista® Business Edition or greater, 32-bit Edition only SP1 or greater.
Windows® XP Professional SP3 or greater.
All Windows hot fixes for the service pack must also be installed.
Data Collection Specification
Throughput: Up to 1800 Sheets per hour
Read Heads: 200 dpi resolution, up to 256 levels of grayscale per pixel; pencil and ink read capabilities
Forms:2.5” x 5.5” to 8.5” x 14” (60-100 lb. Offset),Uses both Mark Reflex and Trans-Optic forms;Pencil and ink forms may be used
Feeder Capacity:40 sheets, 90 g/m2 (24 lb bond, 60 lb Offset)
Spacing’s supported:.166, .166 48 cell,.200 inline, .200 offset,.200 line read, and .300 line read
Barcode: Standard Software read through ScanTools
Bundled Software: ScanTools Plus
Document Imaging Specifications
Throughput(200 dpi, landscape, letter size,black and white/grayscale/color):Up to 30 page per minute/60 images per minute
Image output:Black and white, grayscale (8 bit), color (24 bit)
Output resolution:75, 100, 150, 200, 240, 300, 400, 600 and 1200 dpi
Maximum document size:216 mm x 863 mm (8.5 in. x 34 in.)
Minimum document size:64 mm x 89 mm (2.5 in. x 3.5 in.)
Paper Thickness and Weight:34-413 g/m2 9-110 lb.) paper
Feeder Capacity :Up to 70 sheets of 60 g/m² (16 lb.) paper
Bundled Software:TWAIN driver, Click & Scan
File Format Outputs:Single and multi-page TIFF, JPEG, RTF, PDF
